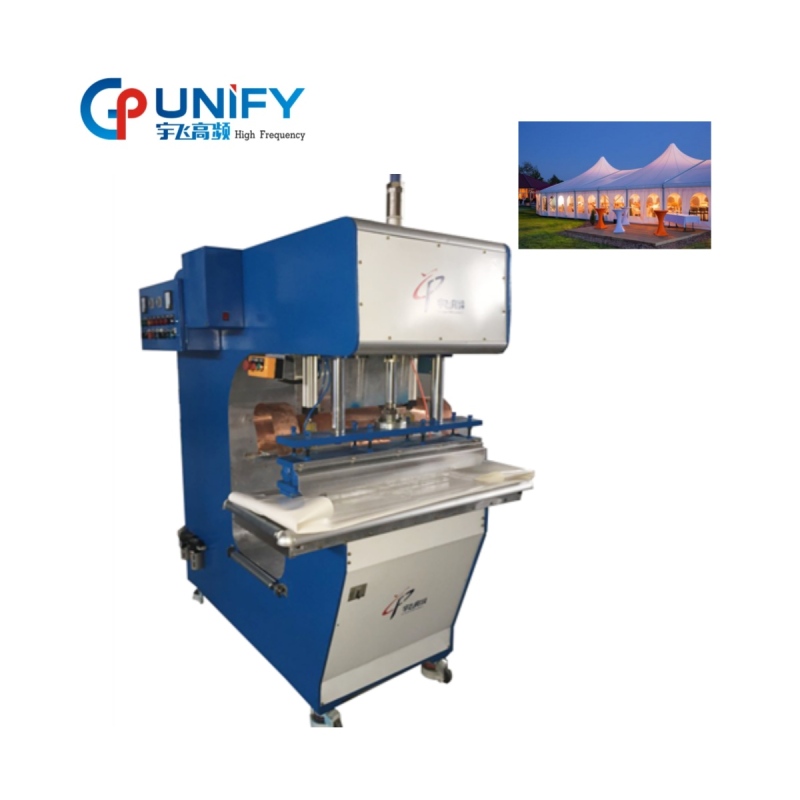

High Frequency Pvc Fabric Membrane Welding Machine
Machine Features:
Lighting of the station projector lamp.
Infrared ray positioning device.
High sensitive spark protection, one-millionth of a second off protection.
Equipped with positioning wheel, mobile positioning is easy to solve.
Line filter protection avoid electric field radiation and make the equipment stable operation.
Specifications:
Type | Power KW | Frequency MHz | Tube model | Pressure Kg | Working electrode size | Remark |
YF-HFM8-A | 8 | 27.12 | 7T69R | 500 | Customized | pneumatic |
YF-HFM8-B | 5000 | hydraulic | ||||
YF-HFM8-C | >1000 | |||||
YF-HFM15-A | 15 | 8T85 | 2000 | |||
YF-HFM15-B | >2000 | |||||
YF-HFM15-C | >2000 | |||||
| YF-HFM25-A | 25 | 8T25R | 2000 | |||
| YF-HFM25-B | >2000 | |||||
| YF-HFM25-C | >2000 |
High Frequency Pvc Fabric Membrane Welding Machine application range:
Automated travelling head high frequency welding machine, specializing in the production of architectural stretch film structure, tents, truck tarpaulins, PVC oil tanks, large advertising cloths, fast doors, swimming pool liners & covers, large inflatable models, airline hangars and so on. Special pulse welding can be used as auxiliary welding such as for non-HF weldable fabrics such as PE and PP.
About High Frequency Pvc Fabric Membrane Welding Machine：
HF welder can be widely used in production of small and large format tensile structures, membranes, tarpaulin, tents, oil booms, truck covers, swimming pool liners & covers, airline hangars, large billboards, fast doors, side curtains, etc.

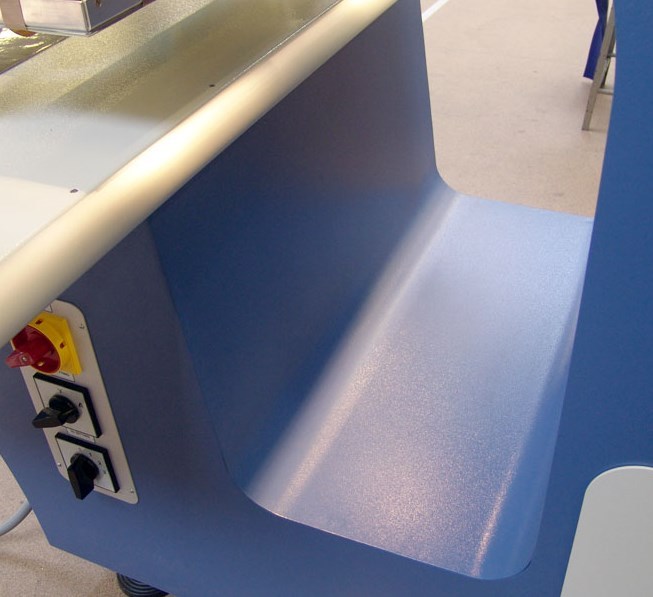

HF welders is equipped with special deep and wide trough behind the electrode for material storage and handling. The machine has an optional smooth sliding wheel that is easy to move in the welded structure or move to the ideal position in the manufacturing hall.
Details:Automatic clamping of mould (pneumatic clamping, saving mode and adjusting time)
Welded products:
Equipment appearance design

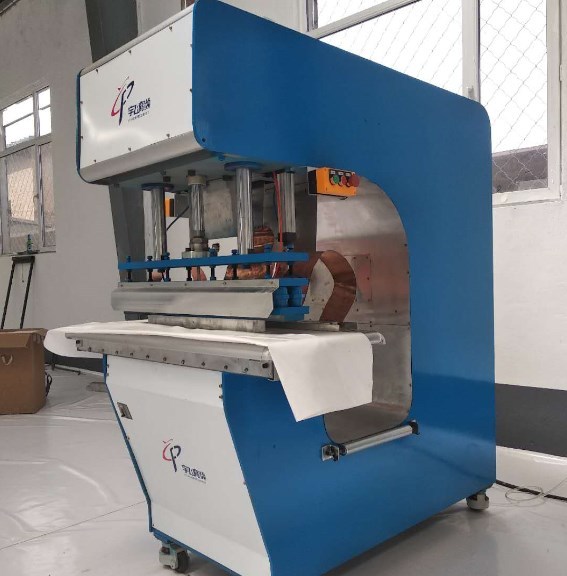

The main structure of this equipment adopts an integrated C-shaped steel plate, which is more durable. The device will not deform over time.
