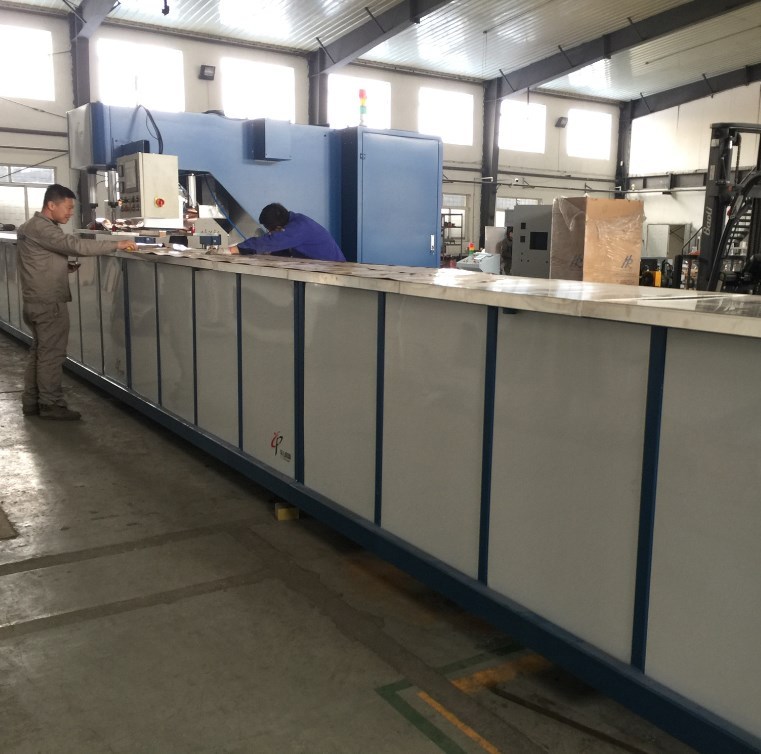

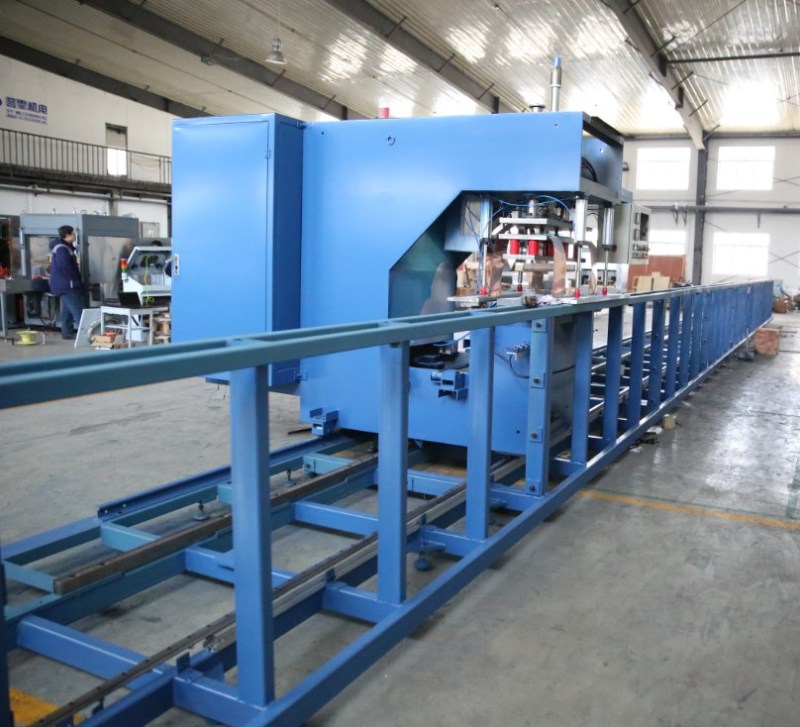

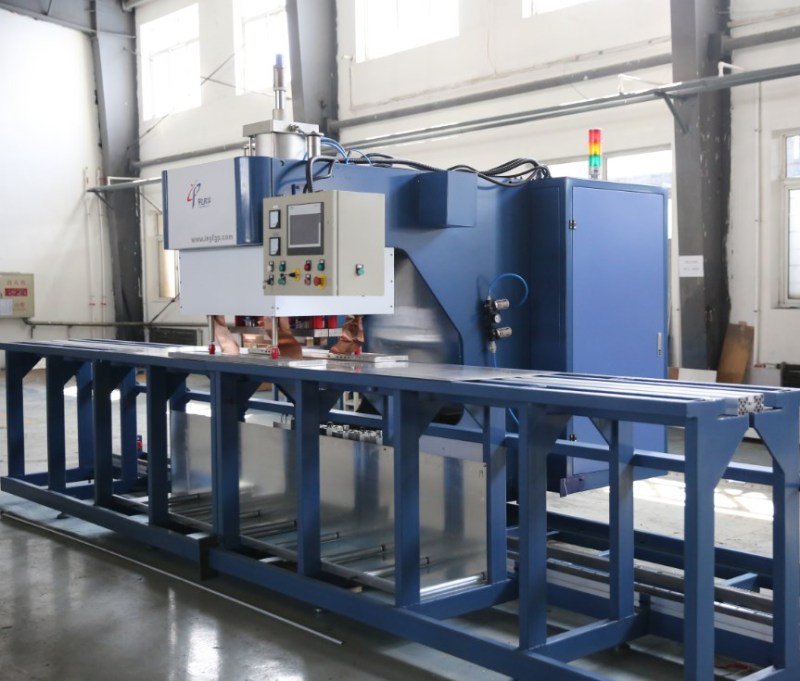

High Frequency Pvc Tarpaulin Canvas Welding Machine
Machine Features:
PLC control, touch screen operation.
Prestore of a large amount of technical parameters.
Set technology parameters digitally in different times.
Fault self-diagnosis and screen displaying.
The table is designed with negative pressure adsorption to prevent material slippage.
There are two walking tables on the back of the press. The operator can operate the machine with the press.
Specifications:
Type | Power KW | Frequency MHz | Tube model | Pressure Kg | Working electrode size | Remark |
YF-HFM8-A | 8 | 27.12 | 7T69R | 500 | Customized | pneumatic |
YF-HFM8-B | 5000 | hydraulic touch screen display Automatic Power Tracking Automatic track infrared positioning | ||||
YF-HFM8-C | >1000 | |||||
YF-HFM15-A | 15 | 8T85 | 2000 | |||
YF-HFM15-B | >2000 | |||||
YF-HFM15-C | >2000 | |||||
| YF-HFM25-A | 25 | 8T25R | 2000 | |||
| YF-HFM25-B | >2000 | |||||
| YF-HFM25-C | >2000 |
High Frequency Pvc Tarpaulin Canvas Welding Machine application range:
Automated travelling head high frequency welding machine, specializing in the production of architectural stretch film structure, tents, truck tarpaulins, PVC oil tanks, large advertising cloths, fast doors, swimming pool liners & covers, large inflatable models, airline hangars and so on. Special pulse welding can be used as auxiliary welding such as for non-HF weldable fabrics such as PE and PP.
About High Frequency Pvc Tarpaulin Canvas Welding Machine：
Oscillating power: 10/15/20 / 25-35kW
Power Supply: 15/22/30 / 38-45Kkva
Welding surface: 400-1200cm 2
Main fuse: 32/40/50 A
Operating frequency: 27.12 MHz ± 0.6%, HiQ Gen5 HF generator
Power Source: 3x400 V; 50 Hz
Power tube: Air-cooled cermet transistor
Warranty 12 months
We believe that the best after-sales service does not require after-sales service, and strive to improve the quality of equipment. All efforts to make products safe, comfortable and trouble-free.
Perfect protection circuit to avoid the damage for molds and workpieces
Certificates available: CE, ISO9001, CSR, High Frequency Electromagnetic Radiation Monitoring Report
Details:
Laser positioning, more accurate welding
Welded products

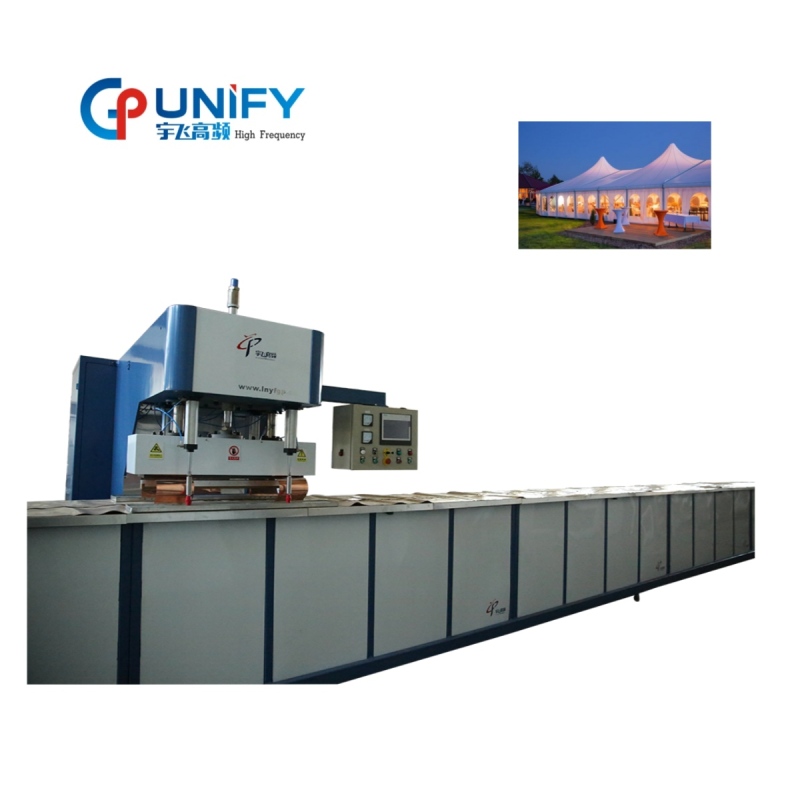

Equipment appearance design
